EDGE EDBX100.4-E1 DBX Series 4 Channel 800 watts Amplifier
The DBX Series amplifiers represent the pinnacle of car audio engineering, combining innovative cooling technology with extended filtering capabilities. This 4-channel powerhouse delivers exceptional Class AB sound quality with strategic thermal management for reliable high-performance operation.
Key Features

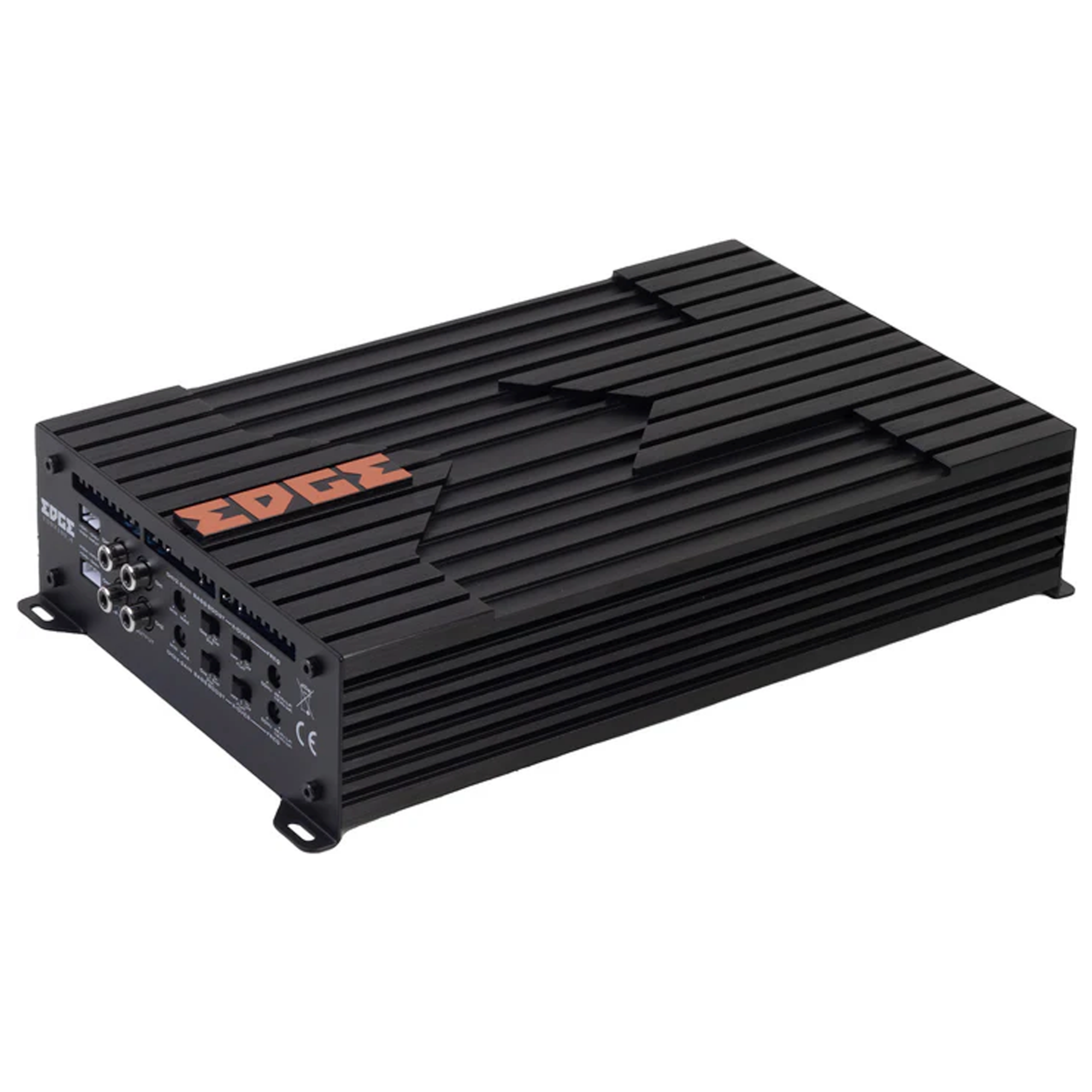

- Premium Design: Unique “Big E” design with over-engineered T-bar progressive heatsink for optimal heat dispersion
- Extended Crossover Control: HPF up to 11kHz and LPF to 4kHz for superior speaker tuning flexibility
- Class AB Technology: Rich, warm sound reproduction superior to Class D alternatives
- Internal Fan Cooling: Active thermal management keeps temperatures low during high-volume operation

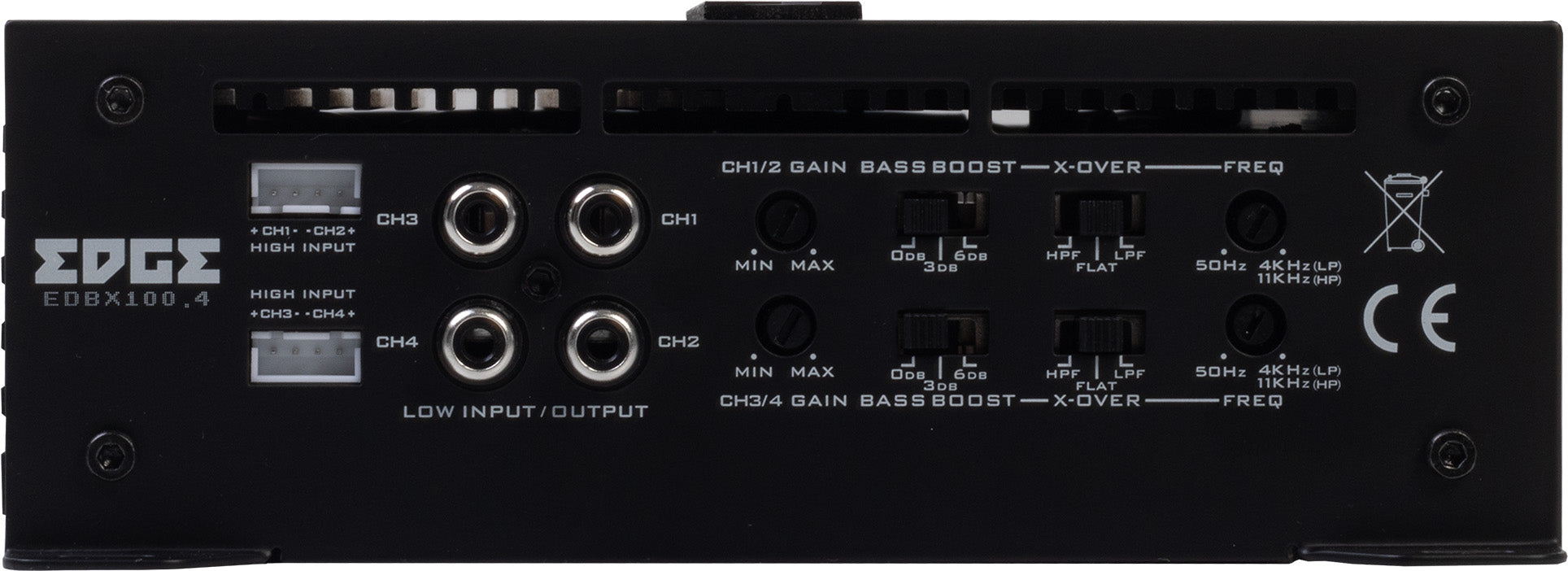

- Versatile Connectivity: High and low level inputs with auto-sense turn-on functionality
- Complete Control: 3 crossover options, bass boost, and comprehensive tuning capabilities
Technical Specifications
- Configuration: 4 channel
- RMS @ 4 Ohms Stereo: 4 x 80 watts
- RMS @ 2 Ohms Stereo: 4 x 100 watts
- RMS @ 4 Ohms Mono: 2 x 200 watts
- Maximum Power: 800 watts
- Frequency Response: 20Hz – 20kHz
- Crossover Type: LP / HP / Flat
- Crossover Range: 30Hz – 250Hz
- Recommended Fuse: 2 x 20A
- Topology: Class AB
- Dimensions: 63mm x 306mm x 179mm (2.5″ x 12.1″ x 7.1″)
Perfect for enthusiasts seeking premium sound quality and advanced tuning control for comprehensive car audio system upgrades.
