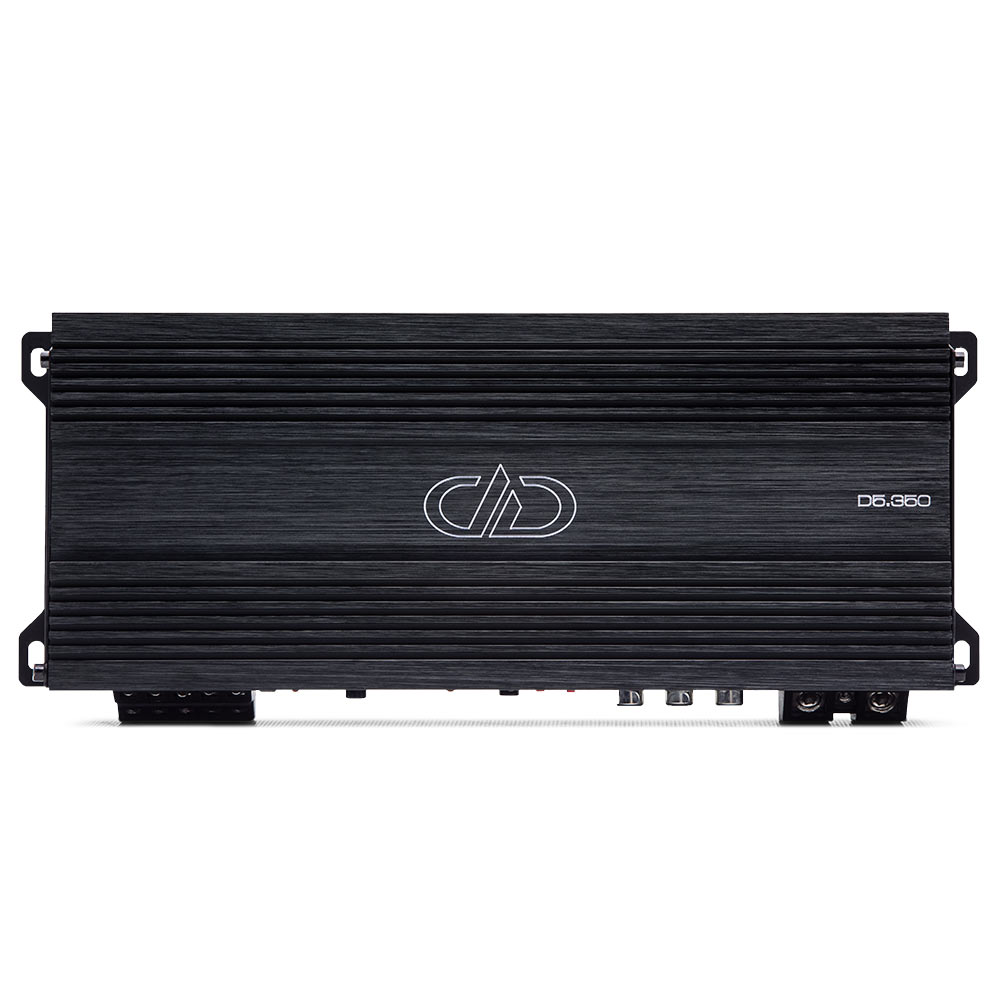

DD Audio D5.350
The D Series D5.350 is a compact 5-channel amplifier that delivers full-size performance in a space-saving design. Perfect for powering complete audio systems, it combines a 4-channel section with dedicated subwoofer amplification while maintaining DD Audio’s renowned build quality and precision engineering.
Key Features
- Compact 5-Channel Design: 4x140W + 350W dedicated sub channel in minimal footprint
- Variable Bandpass Crossovers: Precision tuning with adjustable frequency ranges
- LED Clipping Indicators: Visual feedback for optimal performance monitoring

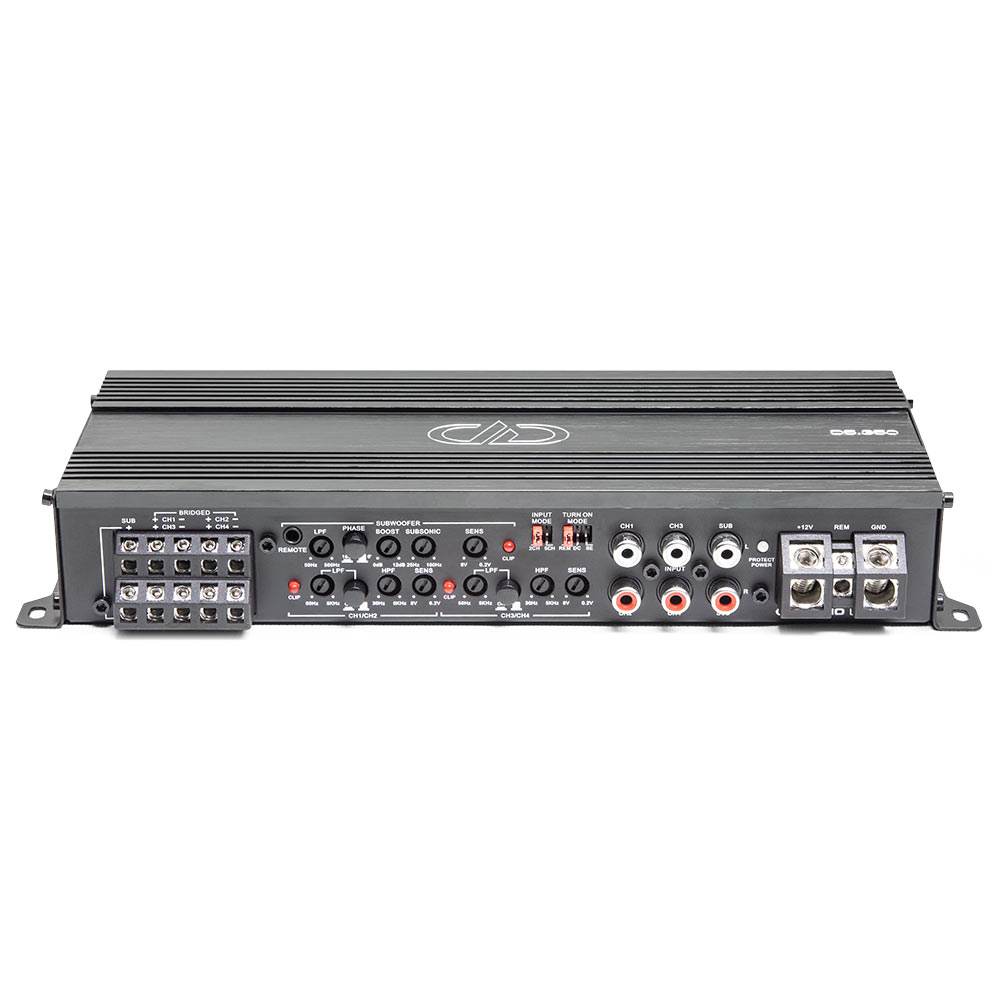

- Single-Side Controls: Easy installation with consolidated connections and controls
- Auto Turn-On Options: Convenient activation modes for seamless integration
- Moisture Resistant: Conformal coated circuitry and corrosion-proof switches
- Heavy Duty Construction: Anodized aluminum heatsinks and discrete output sections
- Wired Remote Included: Complete control package in the box
Technical Specifications
- Power Output: (CH1-4) 140W x 4 @ 2Ω, (CH5) 350W x 1 @ 1Ω
- Operating Voltage: 9-16V
- THD: 0.2%
- Signal-to-Noise Ratio: 85dB
- Frequency Response: 30Hz – 25kHz
- Damping Factor: 100
- Max Current Draw: 90 Amps
- Dimensions: 9.8″ x 4″ x 1.7″
- Power Wire Gauge: 4 AWG
- Speaker Wire Gauge: 12 AWG
Ideal for boats, motorcycles, ATVs, and compact car installations where space is premium but performance cannot be compromised.
