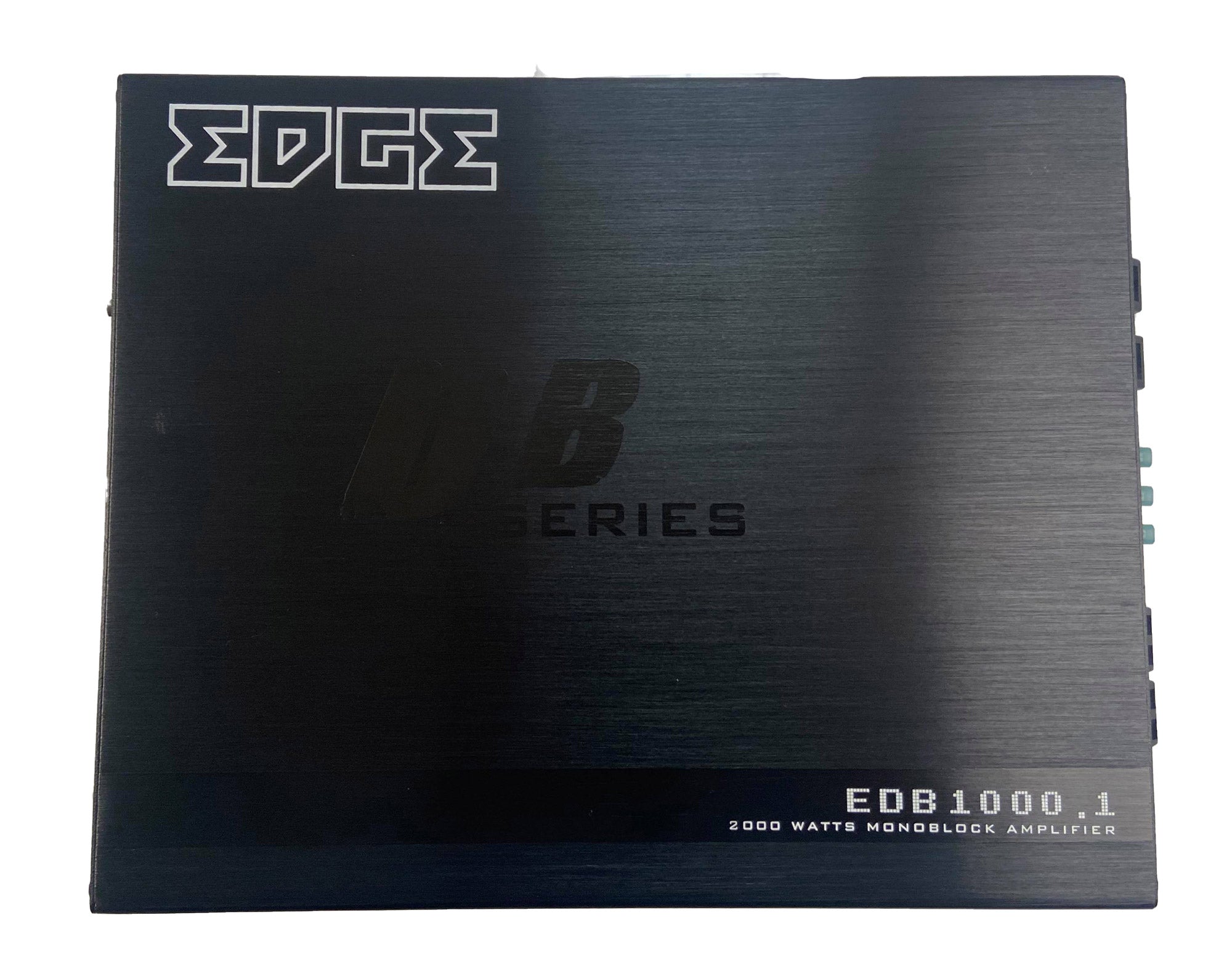

EDGE EDB1000.1D-E4
The EDGE DB series represents exceptional entry-level amplification, engineered to perfectly complement the complete range of DB series speakers and subwoofers. This monoblock powerhouse combines efficient Class D topology with professional-grade features for superior bass performance.
Key Features
- Built-in Active Crossovers: Precise frequency control for optimal subwoofer integration
- Bass Boost Circuit: Enhanced low-frequency response for deeper, more impactful bass
- Extruded Aluminum Heatsink: Superior heat dissipation for reliable performance
- Efficient Class D Topology: Maximum power output in compact, space-saving design
Technical Specifications
- Type: Monoblock
- RMS @ 4 Ohms: 1 x 400 watts
- RMS @ 2 Ohms: 1 x 650 watts
- RMS @ 1 Ohms: 1 x 1000 watts
- Maximum Power: 2000 watts
- Frequency Response: 15Hz – 250Hz
- Crossover Type: LP / Subsonic
- Crossover Range: 15Hz – 250Hz
- Topology: Class D
- Installation Dimensions: 46mm x 275mm x 205mm (1.8″ x 10.8″ x 8.1″)
Perfect for installations where maximum power and minimal space requirements are essential for exceptional subwoofer performance.
