EDGE EDBX350.2-E1
The DBX Series amplifiers represent the pinnacle of car audio engineering, combining innovative cooling technology with superior Class AB amplification. The EDBX350.2-E1 delivers exceptional power and sound quality with advanced thermal management and premium tuning capabilities.
Key Features

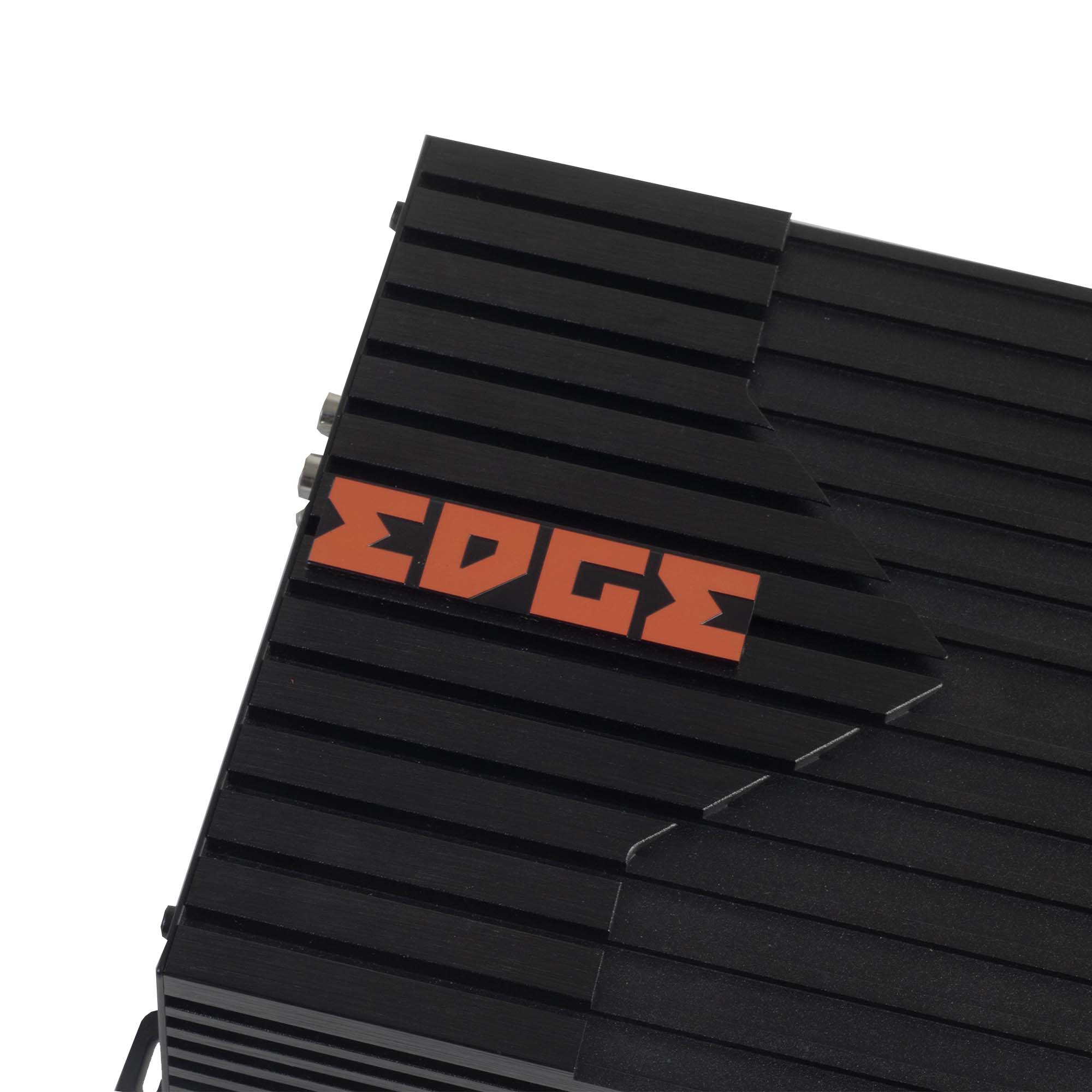

- Progressive T-Bar Heatsink: Unique “Big E” design with engineered fins for superior heat dispersion
- Class AB Technology: Delivers rich, warm sound quality superior to Class D competitors
- Extended Filter Range: HPF up to 11kHz and LPF to 4kHz for precise speaker control
- Internal Fan Cooling: Maintains optimal temperature during high-volume operation
- Versatile Crossover Options: LP/HP/Flat settings with bass boost functionality
- Flexible Inputs: High and low level inputs with auto sense turn-on
Technical Specifications
- Configuration: 2 channel
- RMS Power @ 4 Ohms Stereo: 2 x 250 watts
- RMS Power @ 2 Ohms Stereo: 2 x 350 watts
- RMS Power @ 4 Ohms Mono: 1 x 700 watts
- Maximum Power: 1400 watts
- Frequency Response: 20Hz – 20kHz
- Crossover Range: 30Hz – 250Hz
- Recommended Fuse: 2 x 30A
- Topology: Class AB
- Dimensions: 63mm x 336mm x 179mm
Perfect for audiophiles seeking high-power amplification with superior sound quality and advanced thermal management.
