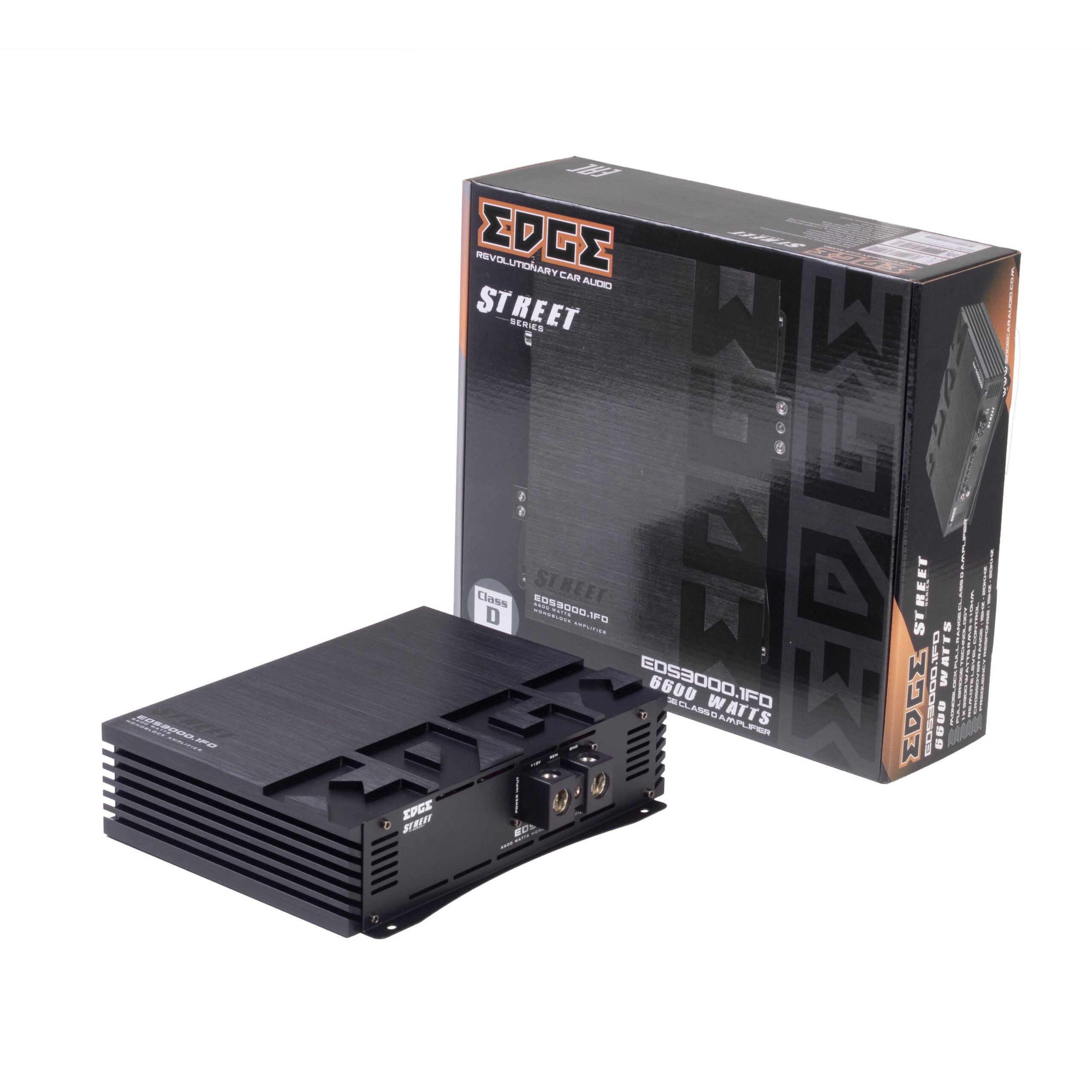

EDGE EDS3000.1FD-E3 Street Series 6600 Watts Monoblock Amplifier
The EDGE Street Series represents the latest evolution in high-performance car audio amplification, combining Class D efficiency with full bridge technology to deliver exceptional power in an ultra-compact footprint. This monoblock powerhouse generates up to 3300W RMS with advanced thermal management and versatile tuning options.
Key Features
- Full Bridge Technology: More efficient DC to AC power conversion for maximum output
- Class D Topology: Ultra-efficient design reduces heat generation and power consumption
- Built-in Active Crossovers: Precise frequency control with LP/HP filtering capabilities
- Bass Boost Circuit: Enhanced low-frequency response for impactful bass performance
- Wideband Frequency Response: Full spectrum coverage from 15Hz to 20kHz
- Custom Heatsink Design: Over-engineered cooling fins ensure optimal thermal management
- Compact Footprint: Maximum power density in minimal installation space
Technical Specifications
- Model: EDS3000.1FD-E3
- Configuration: Monoblock
- RMS @ 4 Ohms Mono: 1100 watts
- RMS @ 2 Ohms Mono: 2050 watts
- RMS @ 1 Ohm Mono: 3300 watts
- Maximum Power: 6600 watts
- Frequency Response: 15Hz – 20kHz
- Crossover Type: LP / HP
- Crossover Range: 15Hz – 20kHz
- Recommended Fuse: 250A external fuse
- Topology: Class D
- Dimensions (H x W x D): 63mm x 184mm x 232mm (2.5″ x 7.2″ x 9.1″)
Perfect for audiophiles demanding professional-grade power and versatility for subwoofers, midrange drivers, or high-frequency applications.
