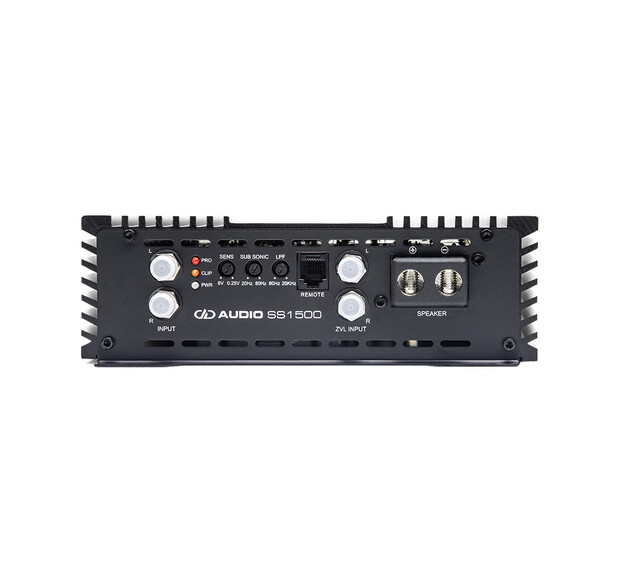

DD Audio SS1500
The DD Audio SS1500 is a half bridge, high speed, full range Class D monoblock amplifier engineered to deliver exceptional power and sound quality. With over 1500 watts of clean 20Hz to 20kHz power at less than 1% THD+N, this compact powerhouse excels at driving subwoofers and multiple mid/high speaker combinations.
Key Features
- High Power Output: 1500W at 1 ohm, 1100W at 2 ohm continuous power
- Variable Crossovers: Sub-sonic filter (20-80Hz) and low-pass filter (80Hz-20kHz)
- DD ZVL Input: Advanced input technology for superior signal processing
- Wired Remote Control: Convenient control with included remote and clip
- Compact Design: Small footprint at 7.125″ x 7.3″ x 2.4″
- Efficient Cooling: Internal fan cooling with thick-walled aluminum heat sink
- Premium Components: High efficiency toroidal transformer with oversized capacitor bank
Technical Specifications
- Operating Voltage: 9-16V
- Input Channels: 2
- Output Channels: 1
- Continuous Power @ 1 Ohm: 1500W
- Continuous Power @ 2 Ohm: 1100W
- THD: <1.0%
- Frequency Response: 20Hz – 20kHz
- Signal-to-Noise Ratio: 95dB
- Damping Factor: 100
- RCA Input Sensitivity: 0.25V – 6V
- High-Level Input Sensitivity: 1.1V – 20V
- Dimensions: 7.125″ x 7.3″ x 2.4″
- Weight: 5 lbs
Perfect for enthusiasts seeking professional-grade amplification with versatile connectivity options and compact installation requirements.
