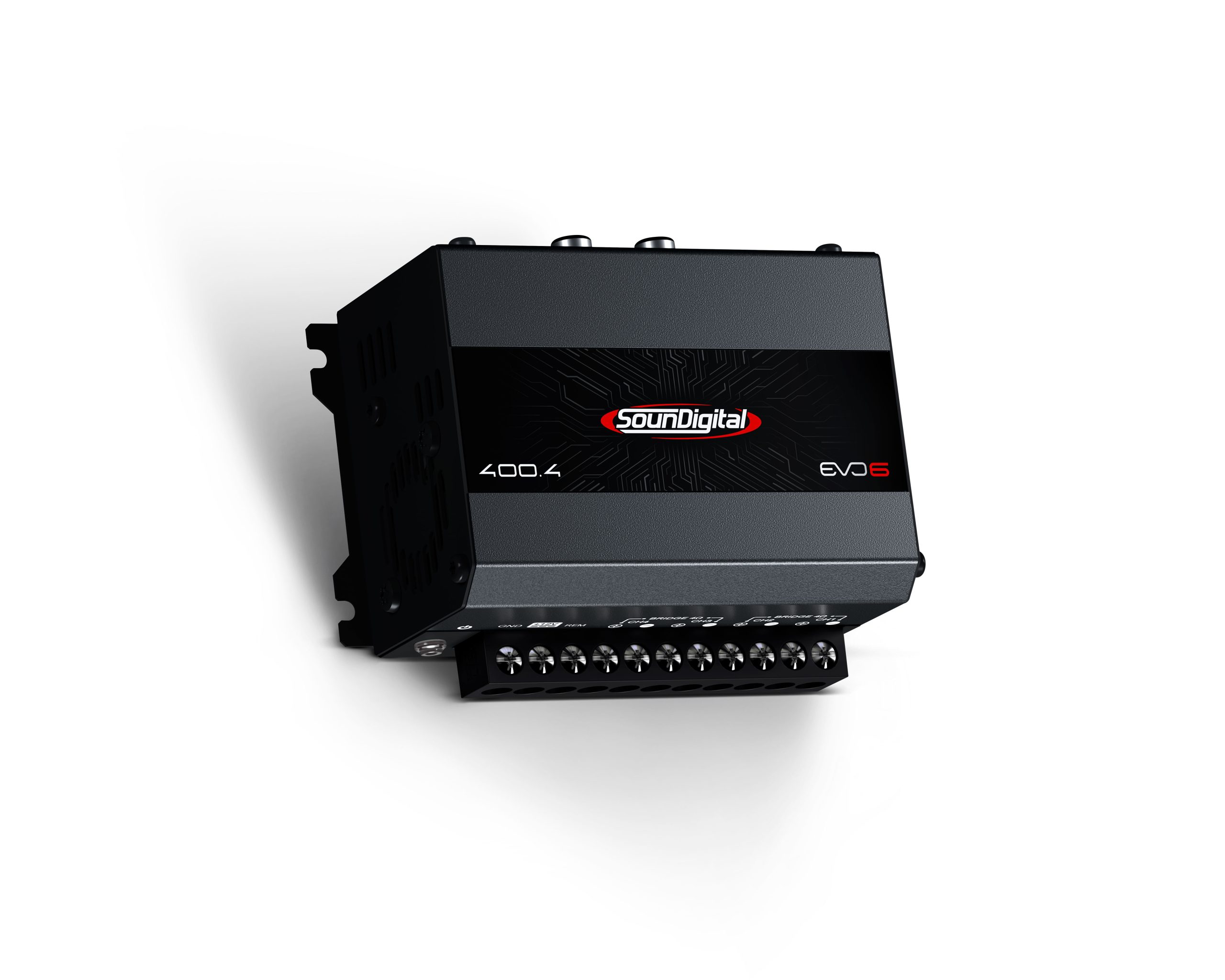

SounDigital 400.4 EVO6
The 400.4 EVO6 represents the pinnacle of compact amplifier engineering, delivering 400W RMS of pristine power across 4 channels. This modern amplifier incorporates SounDigital’s exclusive and patented technologies to provide an exceptionally clean and faithful sound experience while ensuring superior performance and efficiency for even the most ambitious audio projects.
Key Features
- Patented Technology: Exclusive SounDigital innovations for cleaner, more faithful sound reproduction
- Compact Design: Ultra-small footprint at just 3.4″ x 4.2″ x 1.8″ and under 1 pound
- Flexible Configuration: 4-channel or bridged 2-channel operation with variable power options
- Built-in Crossovers: High and low pass filters at 80Hz with 12dB/octave slope
- High Efficiency: 78% total efficiency for reduced heat generation and power consumption
- Wide Voltage Range: Operates reliably from 9V to 16V for various vehicle applications
Technical Specifications
- Power @ 4 Ohm: 4 x 66W RMS
- Power @ 2 Ohm: 4 x 100W RMS
- Bridge Power @ 4 Ohm: 2 x 200W RMS
- Frequency Response: 8Hz ~ 20kHz (-3dB)
- Signal-to-Noise Ratio: 94dB
- Input Sensitivity: 0.2V ~ 2V (RCA)
- Current Draw (Music): 20A
- Current Draw (Maximum): 40.5A
- Damping Factor: 200 (@100Hz nominal impedance)
- Dimensions: 3.4″ W x 4.2″ L x 1.8″ H
- Weight: 0.963 lb
Ideal for installations where space is at a premium but uncompromising sound quality and reliability are essential.
