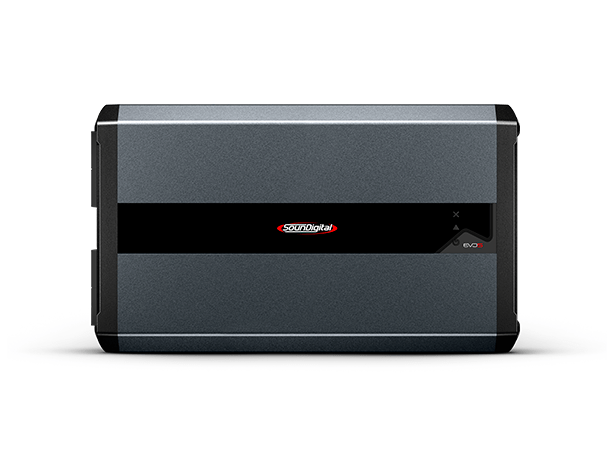

SounDigital 8000.1 EVO 5
The SounDigital 8000.1 EVO 5 is a powerhouse monoblock amplifier that combines cutting-edge technology with compact design to deliver an incredible 8000W RMS of power. Built with the innovative MCPCB (Metal Core Printed Circuit Board) technology, this amplifier ensures maximum efficiency and rock-solid performance for the most demanding audio systems.
Key Features
- MCPCB Technology: Advanced Metal Core PCB design increases efficiency and ensures consistent performance
- Massive Power Output: Up to 8000W RMS at 1 Ohm for earth-shaking bass
- Dual Impedance Options: Available in 1 Ohm and 2 Ohm minimum configurations
- Comprehensive Filtering: Subsonic and low-pass filters with 12dB/oct slope
- Bass Boost: Variable 0-12dB boost at 50Hz for enhanced low-end response
- High Efficiency: 80% total efficiency for optimal power conversion
- Compact Design: Professional performance in a space-saving form factor
Technical Specifications
- Power @ 1 Ohm: 8000W RMS
- Power @ 2 Ohm: 5360-8000W RMS (depending on model)
- Power @ 4 Ohm: 3844-5360W RMS (depending on model)
- Frequency Response: 8Hz – 20kHz (-3dB)
- Signal-to-Noise Ratio: 92dB @ 1 Ohm, 85dB @ 2 Ohm
- Input Sensitivity (RCA): 0.2V – 2V
- Input Sensitivity (High Level): 1.3V – 15V
- Operating Voltage: 9V – 16V
- Current Draw (Max): 762A
- Dimensions: 12.2″ × 7.1″ × 2.5″
- Weight: 8.79 lbs
- Recommended Fuse: 2 × 200A
- Minimum Battery: 2 × 220Ah
Perfect for competition-level systems and serious bass enthusiasts who demand uncompromising power and reliability.
