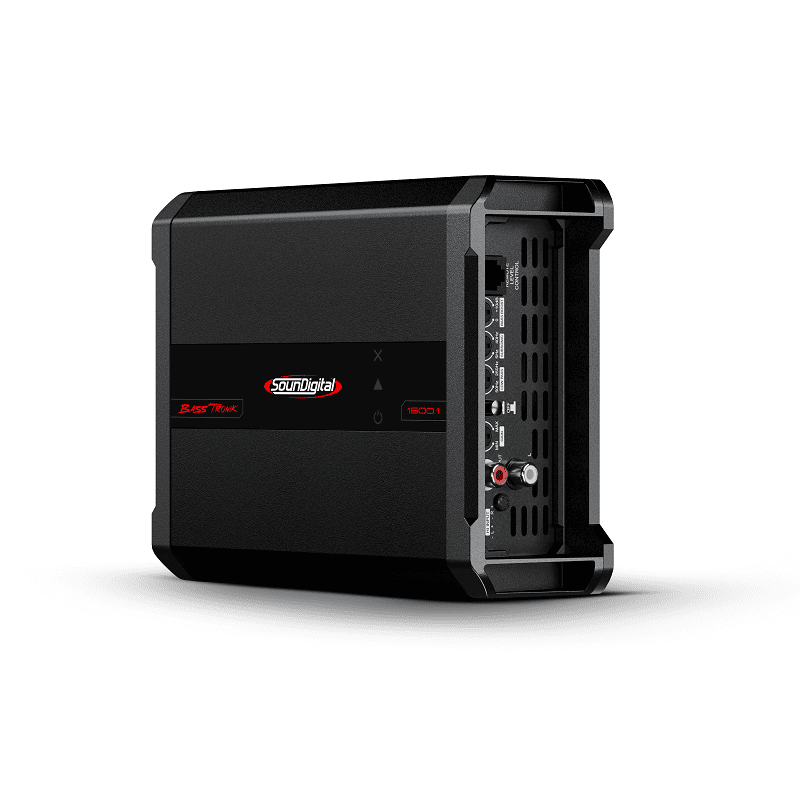

SounDigital 1600.1 BASSTRONIK
The BASSTRONIK series represents SounDigital’s commitment to powerful, direct bass reproduction in an ultra-compact design. This mono amplifier features fixed low-pass and subsonic filters for effortless crossover control, plus a bypass switch for full-range operation with larger speaker systems.
Key Features
- Dual Version Options: Choose 1Ω version (1600W @ 1Ω) or 2Ω version (1600W @ 2Ω) to match your subwoofer setup
- Built-in Crossover Filters: Fixed low-pass (50Hz-250Hz) and subsonic filters simplify bass frequency control
- Advanced Thermal Management: Sophisticated cooling system and 77% efficiency prevent overheating during extended play
- Comprehensive Protection: Software-controlled safety circuits ensure reliable operation and component longevity
- Optional RLC Bass Controller: Free remote bass control with clipping LED monitoring and 5-meter cable included
- Ultra-Compact Design: Maximum power density in minimal space (180.1 x 136.2 x 55mm)
Technical Specifications
- Power Output (1Ω version): 1600W @ 1Ω, 1000W @ 2Ω, 650W @ 4Ω
- Power Output (2Ω version): 1600W @ 2Ω, 1000W @ 4Ω
- Frequency Response: 5Hz – 20kHz
- Signal-to-Noise Ratio: >100dB
- Damping Factor: >2000
- Efficiency: 77%
- Current Draw: 164A maximum, 82A music
- Voltage Range: 10-16V
- Recommended Fuse: 100A
- Dimensions: 180.1 x 136.2 x 55mm
Perfect for serious bass enthusiasts seeking maximum impact from subwoofer installations with professional-grade control and protection.
