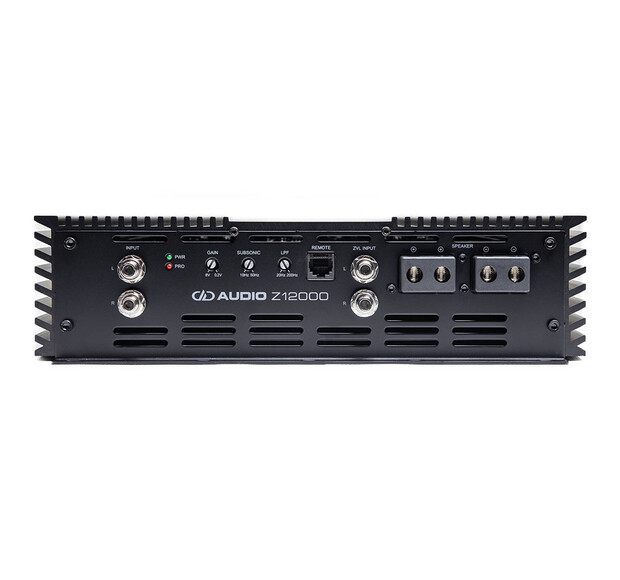

DD Audio Z12000
The Z12000 monoblock subwoofer amplifier represents the pinnacle of DD Audio’s legendary Z series, delivering over 12,000 watts of continuous power in a surprisingly compact footprint designed for serious SPL and demo vehicles.
Key Features
- Optimized High-Current Power Supply: Engineered for maximum power delivery with state-of-the-art circuit optimization
- HVAC Thermal Management: Exclusive High Volume Air Circulation system with heavy-duty aluminum heatsink and brushless fan
- ZVL Linking Module Input: Ready to connect with DD Audio ZVL module for multi-amp system integration
- Remote Level Control: Features LCD voltage display and clipping indicator for precise monitoring
- Variable Sub-Sonic Filter: 24dB/Oct filter adjustable from 10Hz-50Hz
- 5-Way Protection Circuit: Comprehensive protection for reliable operation
- Quadruple Power Terminals: Heavy-duty connection blocks for secure wiring
Technical Specifications
- Power Output: 12,000W @ 1 Ohm, 7,000W @ 2 Ohm, 4,000W @ 4 Ohm
- Dynamic Power: 14,000W
- Operating Voltage: 9-16V
- Max Current Draw: 1,200 Amps
- Signal-to-Noise Ratio: 92dB
- Frequency Response: 10Hz-200Hz
- Damping Factor: 200
- Dimensions: 27″ × 12″ × 3.125″
- Weight: 40 lbs
Perfect for competition SPL vehicles and high-performance subwoofer installations demanding maximum power and reliability.
