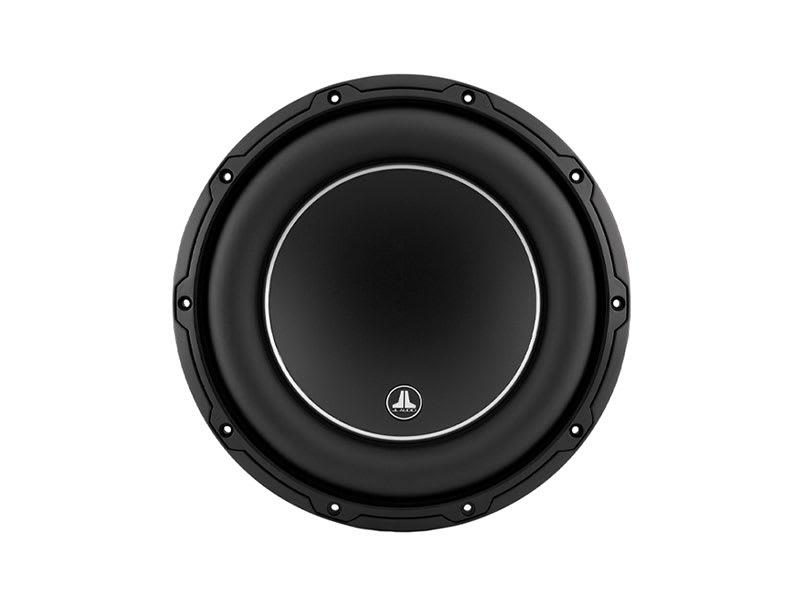

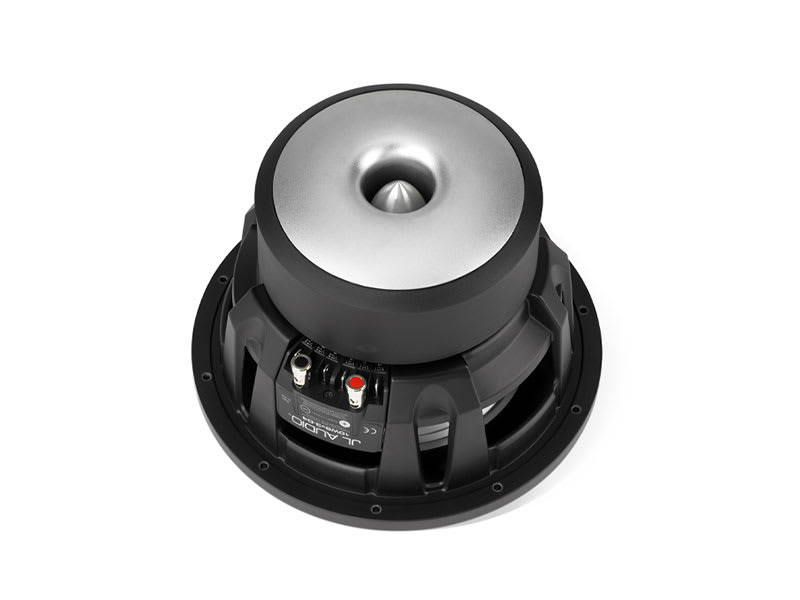

JL Audio 12W6v3-D4 12″ Dual 4 Ohm Car Subwoofer
The JL Audio 12W6v3-D4 is engineered for audiophiles who refuse to compromise on bass quality or enclosure size. Sharing groundbreaking technologies with JL Audio’s flagship W7 series, this 12-inch subwoofer delivers deep, rich, and articulate sub-bass performance from impressively compact sealed or ported enclosures — making it the ultimate solution for powerful sound in space-constrained installations.
Key Features
- DMA-Optimised Motor System: Proprietary Dynamic Motor Analysis technology ensures precise, linear cone movement with ultra-low distortion across the full dynamic range, delivering a 0.75-inch excursion capability.
- Elevated Frame Cooling Technology: JL Audio’s patented design channels high-velocity air directly across the voice coil top plate, dramatically improving power handling and long-term reliability.
- Polypropylene Cone Technology: An injection-moulded, mineral-filled polypropylene cone with rubber surround provides crisp, strong bass output with the rigidity to handle extended high-volume play.
- FCAM Technology: The Floating Cone Attach Method ensures proper surround geometry and dynamic voice coil alignment for superior excursion control.
- Overroll Surround Technology: Maximises cone area by utilising space wasted in conventional speaker designs, enabling massive excursion without sacrificing output.
- PVAC Technology: Pole-Vent Airflow Control directs and accelerates internal airflow to reduce voice coil temperature, preserving audio fidelity and driver longevity.
- Rigid Cast-Alloy Frame: Solid cast-alloy construction eliminates structural flex under serious power loads, protecting sound quality at all output levels.
- Terminal Jumper System: Dual voice coils can be wired in series or parallel using the included jumper system, offering flexible impedance configurations to match your amplifier.
- Custom ABS Trim Ring: The included black ABS trim ring can be custom painted to seamlessly integrate with any interior colour scheme.
Technical Specifications
- Driver Size: 12 inch
- Nominal Impedance: Dual 4 ohm
- Continuous Power Handling (RMS): 600 W
- Recommended Amplifier Power: 200–600 W
- Sensitivity (SPL @ 1W/1m): 85.4 dB
- Free Air Resonance (Fs): 26.919 Hz
- Electrical Q (Qes): 0.487
- Mechanical Q (Qms): 9.365
- Total Q (Qts): 0.463
- Cone Material: Mineral-filled polypropylene
- Surround Material: Rubber
If you demand powerful, precise, and deeply satisfying bass without sacrificing valuable vehicle space, the JL Audio 12W6v3-D4 is the definitive choice for your next premium car audio build.
