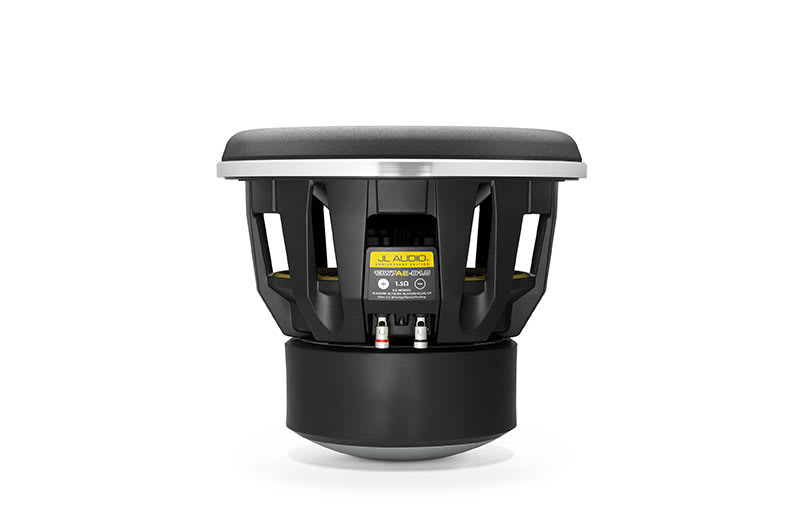

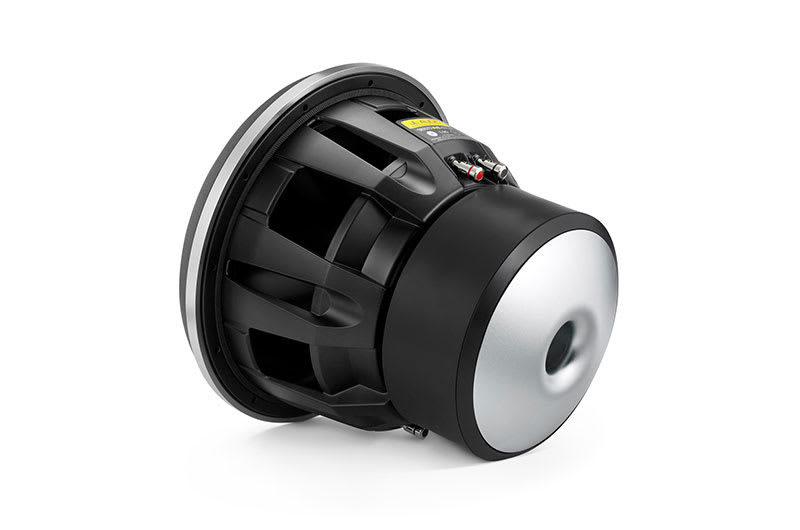

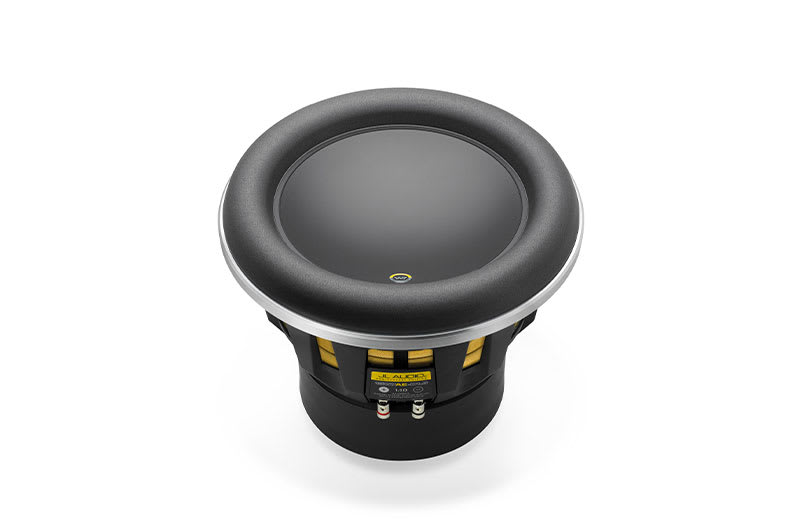

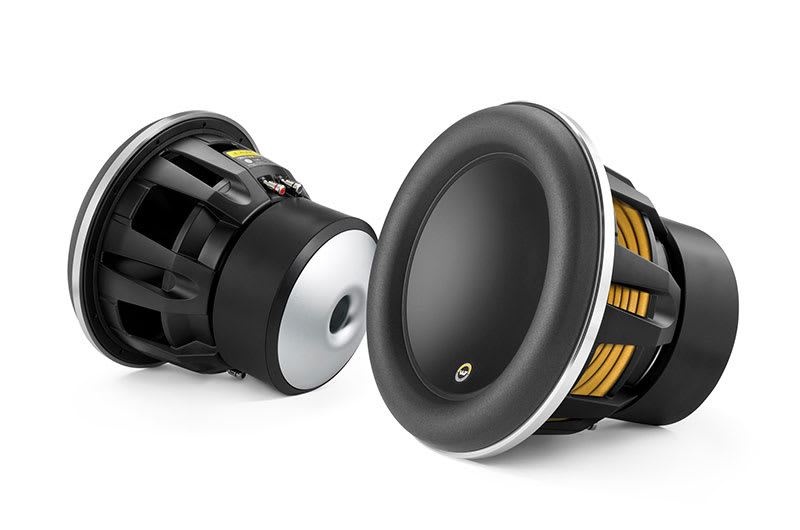

JL Audio 10W7AE-3 10″ Car Subwoofer – Single 3 Ohm
The JL Audio 10W7AE-3 is the definitive reference for high-performance automotive sub-bass. Engineered with eight U.S.-patented technologies, this anniversary edition 10″ subwoofer delivers extreme output, superior linearity, and compelling sound quality simultaneously — making it the ultimate choice for serious car audio enthusiasts who refuse to compromise.
Key Features
- DMA-Optimised Motor System: Dynamic Motor Analysis ensures precise, linear cone movement across a wide range of excursion and power levels, resulting in tight, clean, articulate bass with ultralow distortion.
- W-Cone Technology: Dual lightweight mineral-filled polypropylene skins bonded in a unique W-cone design provide extreme durability, moisture resistance, and rigidity for powerful, low-distortion bass reproduction.
- Elevated Frame Cooling: Patented design channels high-velocity air directly across the voice coil top plate, improving power handling and long-term reliability under demanding conditions.
- Hidden Mounting Flange: The concealed mounting flange and hardware sit beneath the driver’s surround, maximising cone area and delivering a clean, factory-finish aesthetic once installed.
- Overroll Surround Technology: Groundbreaking surround geometry controls massive excursion without sacrificing cone area, enabling deeper, more powerful bass output.
- FCAM Technology: Floating Cone Attach Method bonds the surround and cone assembly to the voice coil former for superior excursion control and dynamic voice coil alignment.
- Radial Cross-Drilled Pole-Piece: Innovative venting directs airflow onto the voice coil former, working in conjunction with Elevated Frame Cooling for maximum thermal dissipation.
- Rigid Cast-Alloy Frame: Solid cast-alloy construction eliminates structural flex under high power, preserving sound quality and long-term durability.
- Anniversary Edition Design Accents: Features a black satin cast-alloy frame, silver-finished anodised trim ring, and exclusive JL Audio badging for a premium look.
- Versatile Enclosure Compatibility: Optimised for use in both sealed and ported enclosures to suit a wide range of vehicle and installation requirements.
Technical Specifications
- Brand: JL Audio
- Model: 10W7AE-3
- Driver Size: 10 inches
- Impedance: 3 ohms (single voice coil)
- Cone Material: Mineral-filled polypropylene (W-cone design)
- Frame Material: Rigid cast alloy
- Speaker Connections: Push-button terminal
- Enclosure Type: Sealed or ported
- Patents: 8 U.S. patents covering motor, suspension, and assembly technologies
Upgrade your car audio system to reference-level performance — the JL Audio 10W7AE-3 sets the standard that all other subwoofers are measured against.
