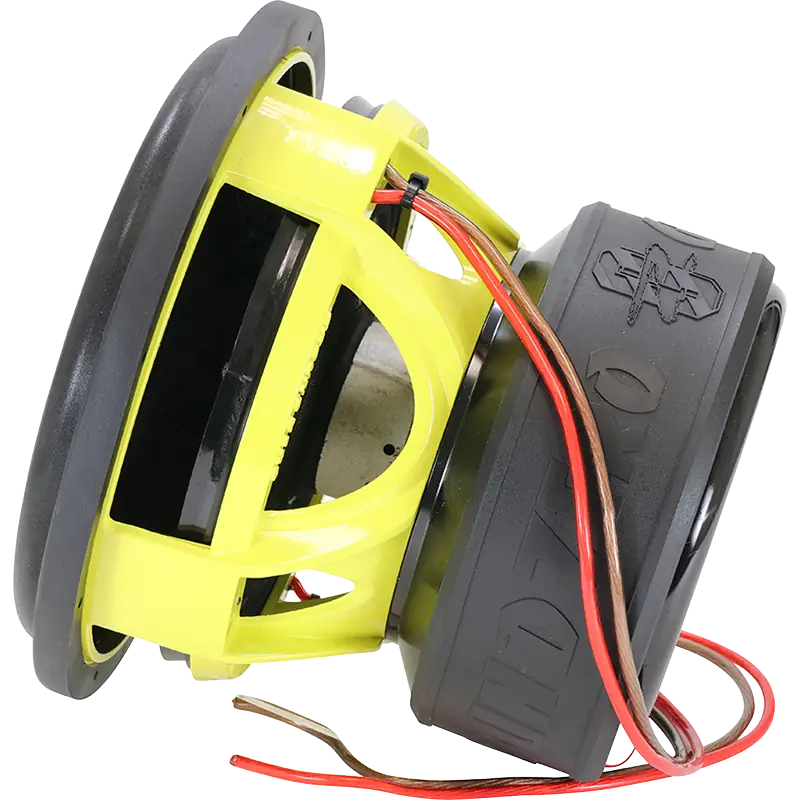

GZNW 30SPL-D1
The GZNW 30SPL-D1 represents the pinnacle of high-performance SPL subwoofer engineering, designed for serious bass enthusiasts who demand maximum output and competition-level performance from their 12-inch subwoofer.
Key Features
- Klippel Optimization: Advanced computer modeling ensures optimal performance and minimal distortion
- Aluminum Cast Basket: Solid construction provides superior strength and heat dissipation
- High-Power Voice Coil: 75mm (3″) CCA round wire design handles extreme power levels
- Reinforced Paper Cone: Optimized cone material delivers precise bass response
- 4-Layer Nomex Spider: Enhanced suspension system for improved linearity and control
- Carbon Design Dust Cap: Lightweight yet durable protection for voice coil assembly
Technical Specifications
- Diameter: 30 cm / 12″
- Power Handling RMS/SPL: 3000 / 6000 Watts
- Impedance: 2x 1 Ohms
- Efficiency: 87.5 dB
- Voice Coil: 75 mm / 3″ CCA
- Max Excursion (Xmax): 70 mm / 2.76″
- Mounting Diameter: 281 mm / 11.06″
- Mounting Depth: 237 mm / 9.33″
- Resonance Frequency (Fs): 38.6 Hz
- Overall Quality (Qts): 0.38
- Equivalent Air Volume (Vas): 23.6 L / 0.83 cu.ft.
Perfect for SPL competitions and extreme bass applications where maximum output and reliability are essential.
