Phoenix Gold Z10AB 10″ Active Subwoofer Enclosure – 200W RMS
The Phoenix Gold Z10AB is a complete, all-in-one active subwoofer solution that brings thunderous, concert-quality bass to your vehicle without the hassle. Pairing a precision-tuned 10″ driver with a built-in Class A/B amplifier and a high-efficiency ported enclosure, this unit delivers everything you need — right out of the box, including a full installation kit and bass remote control.
Key Features

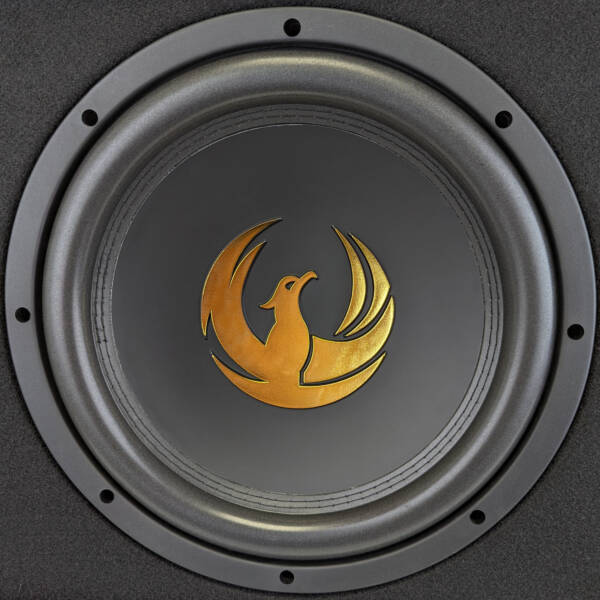

- Powerful 10″ Subwoofer: Handles 800W MAX and 200W RMS for deep, impactful bass performance in any vehicle
- Built-in Class A/B Amplifier: Precisely tuned to the subwoofer with an efficient heat sink for optimal power delivery and long-term reliability
- Ported Trapezoidal Enclosure: Engineered for high efficiency and reduced standing waves, resulting in tighter, more accurate bass response
- High-Level & RCA Inputs: Connect directly to OEM factory head units via high-level inputs or to aftermarket systems via low-level RCA inputs
- Auto Turn-On: Automatically powers the subwoofer when a signal is detected on high-level inputs — no extra wiring required
- Bass Remote Control Included: Adjust bass levels from the driver’s seat with a convenient 5-meter remote cable
- Complete Installation Kit: Includes 5m power wire, 1.2m ground wire, 5m RCA wire, and 5m remote wire — pre-fitted with cable lugs and a fuse for a clean, safe install
Technical Specifications
- Type: Ported Enclosure
- Speaker Size: 10″ (250mm)
- Amplifier Class: Class A/B
- Frequency Response: 20Hz – 200Hz
- Power Rating (MAX): 800W
- Power Rating (RMS): 200W
- SNR (Full Power): 85dB
- Total Harmonic Distortion (THD): 1%
- Low Pass Filter (LPF): 50Hz – 200Hz (12dB/Oct)
- High-Level Input: Yes
- Auto Turn-On: Yes
- Bass Remote: Yes (Included, 5m cable)
- Fuse Rating: 15A
- Power Terminal: 10mm
- Dimensions (L x W x H): 476 x 343 x 331mm
Upgrade your in-car audio experience with the Phoenix Gold Z10AB — the smart, straightforward choice for powerful, plug-and-play bass.
