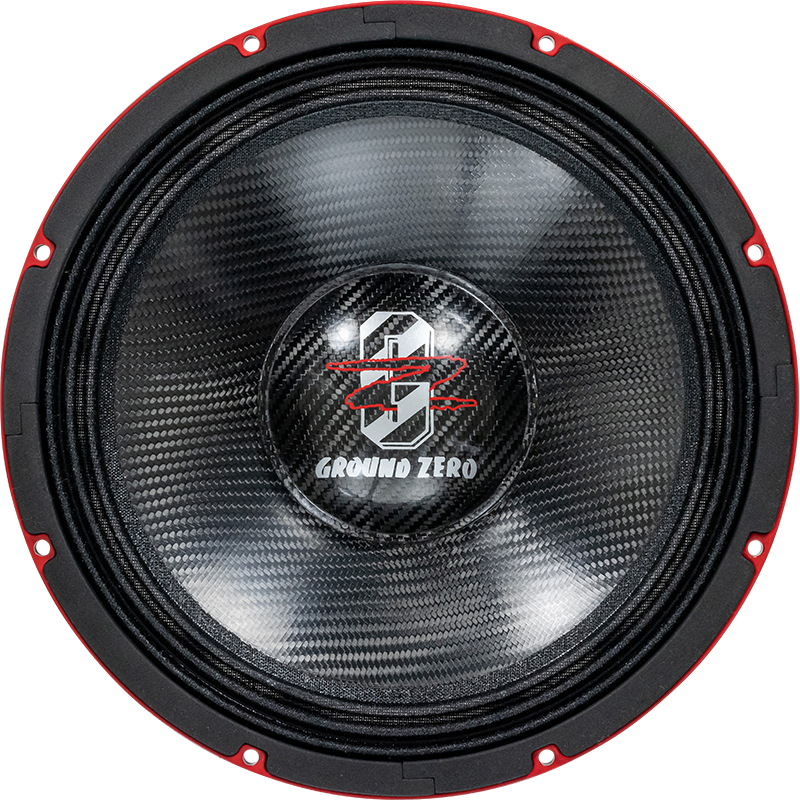

Ground Zero GZCW 10PROC
The Ground Zero GZCW 10PROC is a premium 10-inch high-power midwoofer engineered for serious SPL enthusiasts. Featuring advanced carbon fiber cone technology and Klippel optimization, this midwoofer delivers exceptional performance and reliability in demanding audio applications.
Key Features
- Carbon Fiber Cone: Ultra-lightweight yet rigid construction for superior sound reproduction and durability
- Klippel Optimized: Advanced engineering ensures optimal performance parameters and minimal distortion
- High Power Handling: Handles up to 1000 watts maximum power with 500 watts RMS for impressive output
- Large Voice Coil: 75mm (3-inch) copper voice coil provides excellent heat dissipation and power handling
- W-Shape Surround: Long-stroke surround design maximizes excursion and bass response
- Premium Housing: GZ-design aluminum cast housing ensures durability and optimal acoustics
- Carbon Dust Cap: Reinforced dust cap maintains structural integrity at high power levels
Technical Specifications
- Diameter: 25 cm / 10 inches
- Power Handling: 500W RMS / 1000W Max
- Impedance: 4 Ohms
- Efficiency: 90 dB
- Frequency Response: 30 Hz – 2400 Hz
- Voice Coil: 75 mm / 3 inch Copper
- Mounting Diameter: 227 mm / 8.94 inches
- Mounting Depth: 122 mm / 4.80 inches
- Resonance Frequency: 30 Hz
- Qts: 0.22
- Vas: 53 L / 1.87 cu.ft.
Perfect for high-SPL competition systems and enthusiasts seeking uncompromising midrange performance and power handling.
