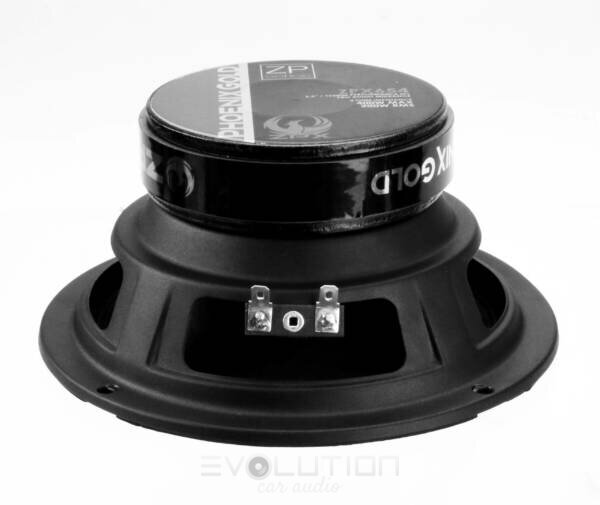

Phoenix Gold ZPX654 Pro Midrange Audio Speaker
The Phoenix Gold ZPX654 is the latest evolution in professional-grade midrange drivers, building on the success of the acclaimed ZP 6.5″ speaker. Engineered for serious car audio enthusiasts, the ZPX654 delivers a significant leap forward in power handling, efficiency, and sound pressure levels, making it the ideal choice for high-performance SPL and SQ builds alike.
Key Features
- 1.5″ OFC High-Temperature Voice Coil: Wound with oxygen-free copper, this voice coil maintains exceptional performance and reliability even under the most demanding high-power conditions.
- Triple Roll Cloth Surround: Engineered for precise and efficient cone movement, the triple roll cloth surround contributes directly to the speaker’s impressive output, low distortion, and overall clarity.
- 20oz Ferrite Motor: A heavy-duty 20oz ferrite motor provides the raw driving force required to extract every ounce of performance from this professional-grade driver.
- Woven Tinsel Leads: Flexible and durable woven tinsel leads ensure reliable long-term connectivity, keeping your system sounding great for years to come.
- Lightweight Paper Cone: The carefully engineered lightweight paper cone optimises sensitivity and transient response, maximising the speaker’s efficiency across its full frequency range.
Technical Specifications
- Speaker Type: PRO Audio Midrange Speaker
- Speaker Size: 6.5″ (165mm)
- Impedance: 4 Ohm
- Frequency Response: 100Hz – 10kHz
- Power Handling (RMS): 200W
- Power Handling (MAX): 400W
- Sensitivity: 91.4dB (1W/1m)
- Re: 3.2 Ohm
- Fs: 117.8 Hz
- Qms: 5.71
- Qes: 0.86
- Qts: 0.75
- Cms: 0.18 mm/N
- Vas: 4.8 L
- BL: 5.3 N/A
- Sd: 136.8 cm2
- Mms: 10g
- Voice Coil Diameter: 1.5″ (38mm)
- Outer Diameter: 165mm
- Mounting Diameter: 141mm
- Mounting Depth: 75mm
- Speaker Grills: Not included
Upgrade your car audio system with the Phoenix Gold ZPX654 and experience professional-grade midrange performance that truly sets the standard.
