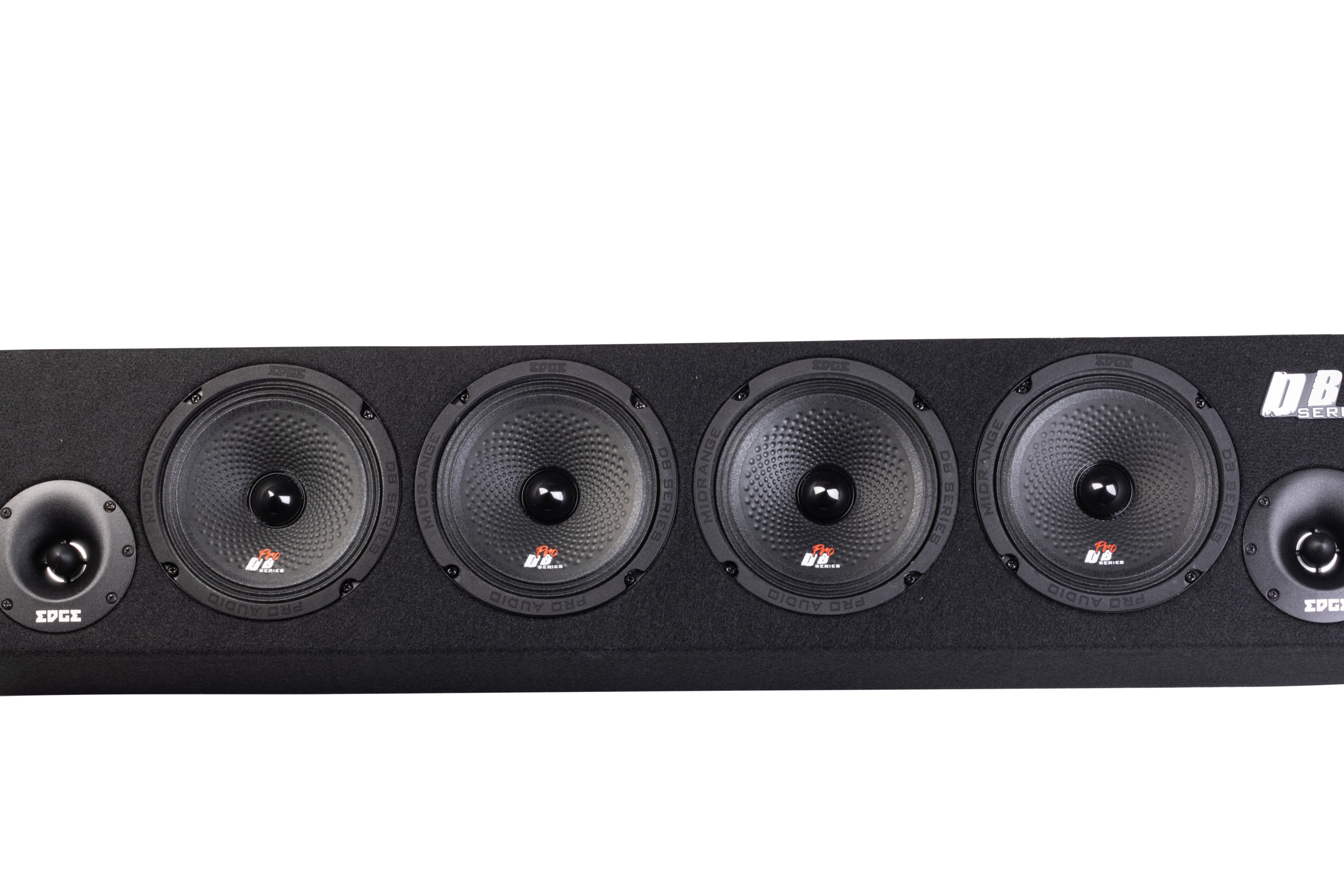

Edge Car Audio EDBPB6-E5 Full Range Pro Audio Enclosure
The EDGE DB Series Pro Box EDBPB6-E5 represents the pinnacle of pro audio engineering, delivering exceptional sound quality and volume for those demanding Extreme Sound Quality Level (ESQL) performance in their vehicles. This all-in-one stereo solution combines four premium component speakers with dual pro tweeters for ultimate audio performance.
Key Features
- Stereo Configuration: Left and right hand sides with ported design featuring terminals on both sides
- Premium Drivers: Four 6.5″ EDBPRO6-E3 pro component drivers with “Golf ball” design cone for increased strength and rigidity
- Flared Turbo Port: Advanced port design for increased efficiency and enhanced bass response
- High-Efficiency Tweeters: Built-in EDBPRO37T-E0 tweeters for crystal-clear high frequencies
- Robust Construction: Solid MDF enclosure with central bracing to minimize resonance and vibration
- Dual Terminal Setup: Two sets of 2x 2OHM spring terminals for stereo operation
Technical Specifications
- Model: EDBPB6-E5
- Drivers: 4x EDBPRO6-E3, 2x EDBPRO37T-E0
- Dimensions: 185mm x 866mm x 271mm (7.3″ x 34.1″ x 10.7″)
- RMS Power: 760 Watts
- Peak Power: 1520 Watts
- Impedance: 2 x 2 Ohms
- Frequency Response: 150 Hz – 20 kHz
Experience professional-grade audio performance with crystal-clear sound reproduction even at extreme volumes.
