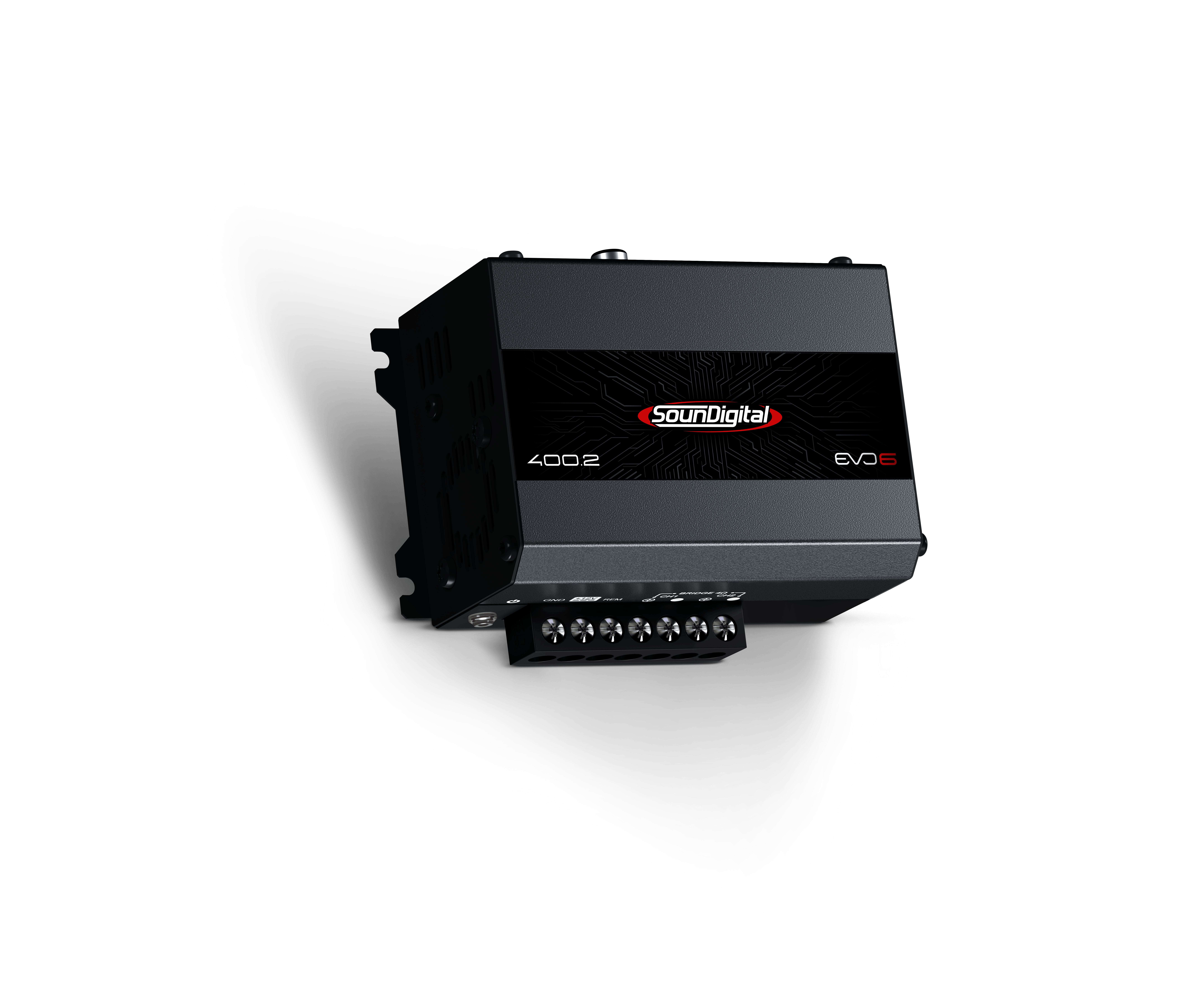

SounDigital 400.2 EVO6
The 400.2 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 2 channels. This amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, while ensuring better performance and efficiency for the most daring audio projects.
Key Features
- Patented Technology: Exclusive SounDigital innovations for cleaner, more faithful sound reproduction
- Compact Design: Ultra-small footprint at just 4.2″ x 3.4″ x 1.8″ and under 1 lb
- Flexible Input Options: Both RCA and high-level inputs for versatile installation
- Built-in Crossovers: 12dB/octave high-pass and low-pass filters at 80Hz
- Bridgeable Output: Combine channels for 400W mono operation
Technical Specifications
- Power @ 4 Ohm: 2 x 132W RMS
- Power @ 2 Ohm: 2 x 200W RMS
- Bridge Power @ 4 Ohm: 1 x 400W RMS
- Frequency Response: 5Hz – 30kHz (-3dB)
- Signal-to-Noise Ratio: >100dB
- Input Sensitivity (RCA): 0.2V – 2V
- Input Sensitivity (High Level): 2.5V – 25V
- Operating Voltage: 9V – 16V
- Current Draw (Music): 20A
- Current Draw (Max): 40A
- Dimensions: 4.2″ x 3.4″ x 1.8″
- Weight: 0.906 lb
- Recommended Fuse: 25A
Perfect for space-conscious installations where premium sound quality and reliable performance are essential.
